Cap, Radiator: Inspection

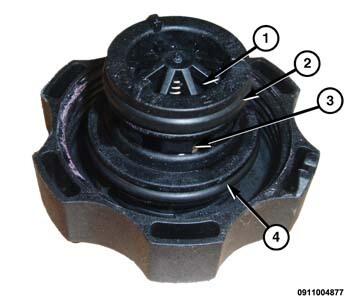

GC0155171Courtesy of CHRYSLER GROUP, LLC

The vent valve in the cap is normally closed.

If the O-ring seal (1) is damaged, replace the cap.

A replacement cap must be the type designed for use on a pressurized coolant bottle.
