Coil, Ignition: Installation: 6.2L
CAUTION:
Do not apply a silicone based grease such as Mopar® Dielectric Grease to the ignition coil rubber boot. The silicone based grease will absorb into the boot causing it to stick and tear.
- Place a small, 360° bead of Uniflor 8172
lubricant (1) along the inside opening of the coil boot approximately 1 to 2 mm from the chamfer edge but not on the chamfered surface.
- Install the ignition coil into cylinder head and push both spark plug boots onto each spark plug.NOTE:
It will be necessary to carefully reposition the A/C Lines for clearance, if installing the left side coils.

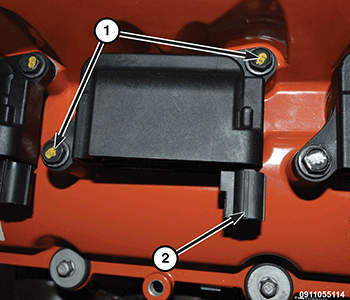

- Install the two coil mounting bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Connect the ignition coil wire harness connector (2) to the coil and lock the connector.
- The following is necessary only if the right side ignition coils were removed.
- Install the Power Distribution Center (PDC) onto the mounting bracket and securely fasten the wire harness.
- Install the coolant tube retainer.
- Install the supercharger coolant bottle reservoir onto the mounting bracket. Refer to RESERVOIR, COOLANT, INSTALLATION .
- The following is necessary only if the left side ignition coils were removed.
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
- Install the engine cover(s) (1).
- Connect the negative battery cable.
