Plug, Glow, 3.0L Diesel: Installation

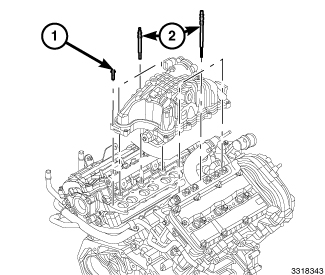

GC0146714Courtesy of CHRYSLER GROUP, LLC
  1. Install the glow plug (2). Tighten glow plug to 8 N.m (71 in. lbs.).

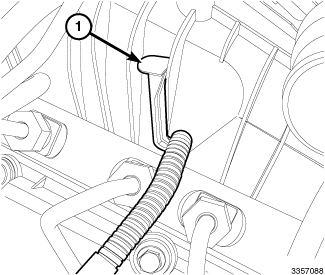

    GC0146738Courtesy of CHRYSLER GROUP, LLC
  2. Connect glow plug wire harness connector (1).
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine cover (1).
  4. Connect the negative battery cable.
