Capacitor, Ignition: Installation

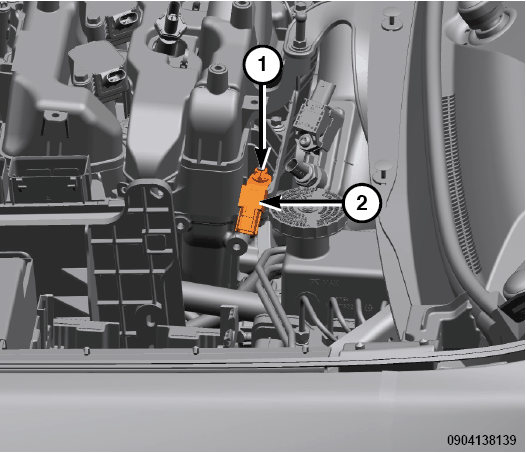

- Install the ignition capacitor (2) with the nut (1) tightened to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).

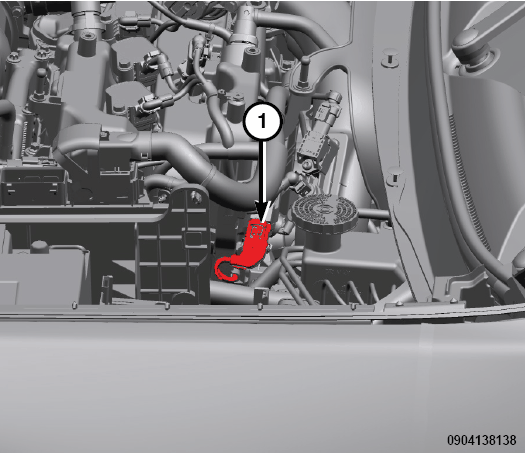

- Connect the ignition capacitor wire harness connector (1).
- Install the top engine cover. Refer to COVER, ENGINE, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
