Module, Fuel Pump, Control: Installation

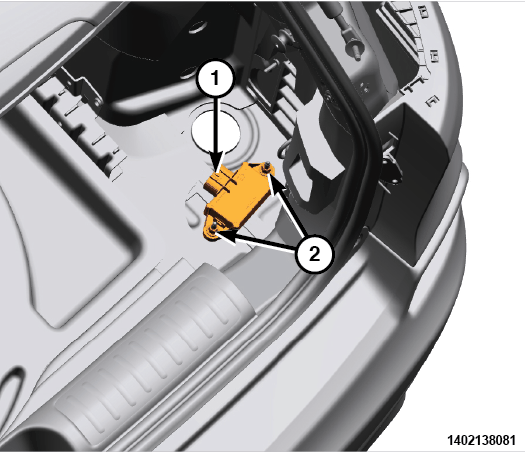

GC0187138Courtesy of CHRYSLER GROUP, LLC
  1. Position Fuel Pump Control Module (FPCM) (1) onto the studs and install nuts (2) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  2. Connect the FPCM wire harness connector.
  3. Install quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
