Sensor, Fuel Pressure: Installation

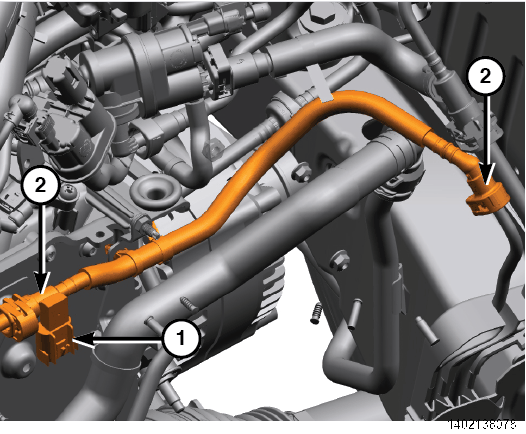

GC0186391Courtesy of CHRYSLER GROUP, LLC
  1. Connect the fuel supply line quick connectors (2). Refer to FUEL SYSTEM/FUEL DELIVERY/FITTING, QUICK CONNECT - STANDARD PROCEDURE .
  2. Connect the Fuel Pressure Sensor wire harness connector (1).
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  4. Start the engine and check for leaks.
  5. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
