Sensor, TMAP-Intake Manifold: Installation

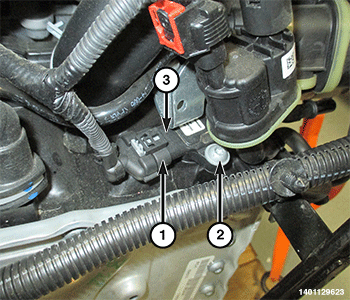

GC0181460Courtesy of CHRYSLER GROUP, LLC
  1. Install the TMAP sensor (3) complete with NEW  O-ring and securely tighten the screw (2).
  2. Connect the TMAP sensor wire harness connector (1).
  3. Install OBD vent valve. Refer to SOLENOID, EVAPORATIVE EMISSIONS PURGE, INSTALLATION .
  4. Install the engine covers. Refer to COVER, ENGINE, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
