Shroud, Steering Column, Upper: Installation

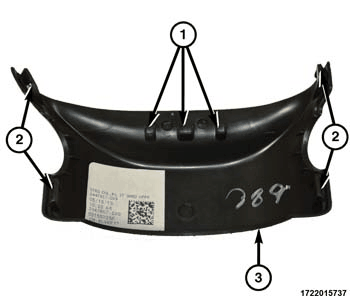

GC0159595Courtesy of CHRYSLER GROUP, LLC
  1. Engage the upper steering column shroud tabs (1) to the gap hider.
  2. Install the upper steering column shroud (3) to the lower steering column shroud and engage the locking tabs (2) together.
