Stabilizer Bar, Front: Installation

NOTE:

Inspect the brackets, insulators and links for wear or damage. Install new components as necessary.

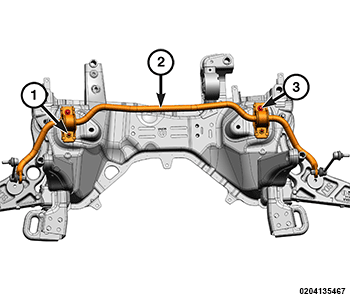

Install the stabilizer bar (2) to the crossmember.

Courtesy of CHRYSLER GROUP, LLC
Install the stabilizer bar to cradle bolts (1), (3) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the crossmember. Refer to INSTALLATION .
