Module, Power Inverter: Installation

Courtesy of CHRYSLER GROUP, LLC

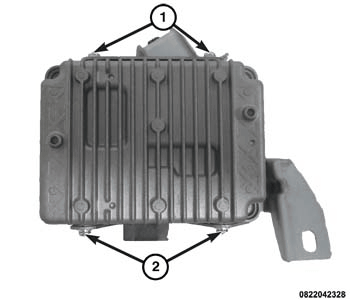

Position the Power Inverter Module (PIM) to the bracket and install and securely tighten the upper (1) and lower (2) fasteners.

Courtesy of CHRYSLER GROUP, LLC

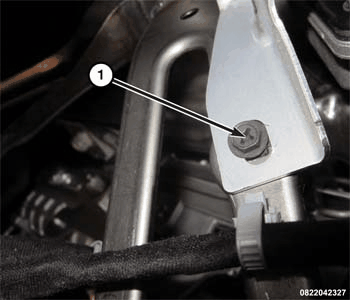

Position the PIM and bracket to the vehicle for installation and install and securely tighten the fastener (1) securing the bracket arm in place.

Courtesy of CHRYSLER GROUP, LLC

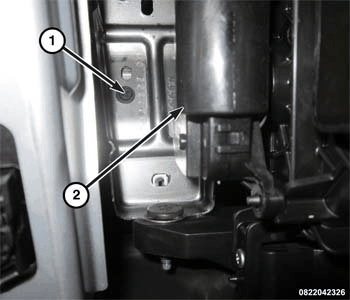

Install and securely tighten the fastener (1) securing the bracket located next to the ventilation door motor (2).
Connect the electrical connector to the PIM.

Courtesy of CHRYSLER GROUP, LLC

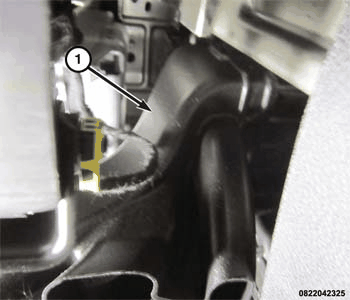

Install the ventilation duct (1). Refer to DUCT, FLOOR DISTRIBUTION, INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
