Outlet, Power, Universal Serial Bus: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Insert the media hub into the floor console end cap.

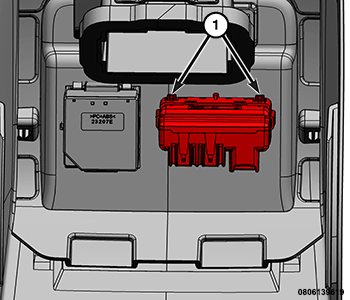

2. Securely engage the plastic retaining tabs (1).
3. Install the floor console end cap. Refer to INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
