Outlet, Power: Removal

NOTE:

The Universal Serial Bus (USB) charge ports are serviced with the media hub. Refer to MEDIA HUB, REMOVAL .

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

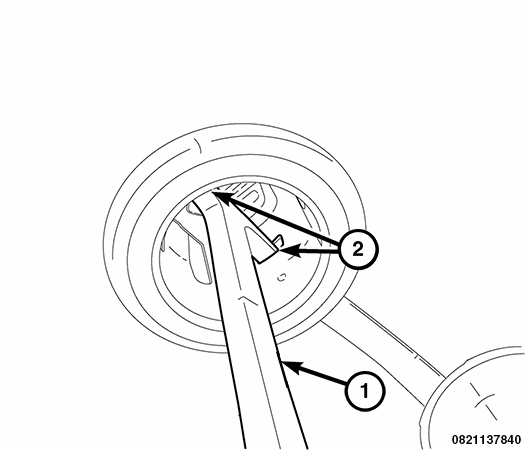

Look inside and note position of the retaining bosses (2).
Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) (1) into the retaining bosses (2) of the power outlet.
Pull out the base through the mounting ring by gently rocking the tool.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the wire harness connector (1) from the power outlet (2).
Set the base aside and remove the base mount ring.
