Sensor, Crankcase Pressure: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0186569Courtesy of CHRYSLER GROUP, LLC

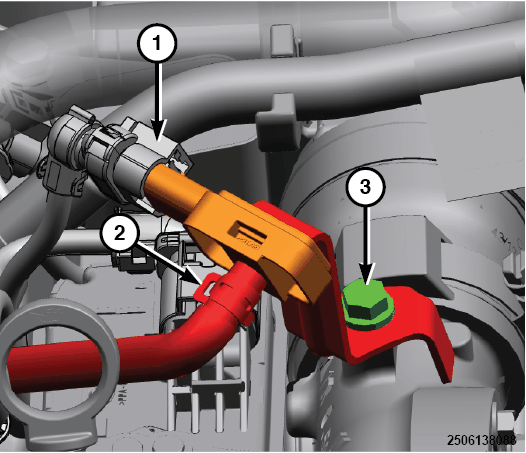

  2. Disconnect the Crankcase Pressure Sensor wire harness connector (1).
  3. Loosen the clamp and disconnect the hose (2) from crankcase heater.
  4. Remove the bolt (3) and remove the Crankcase Pressure Sensor.
    GC0186692Courtesy of CHRYSLER GROUP, LLC
  5. Open the clip (1) and remove the Crankcase Pressure Sensor from bracket (2).
