Buckle, Rear Left
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

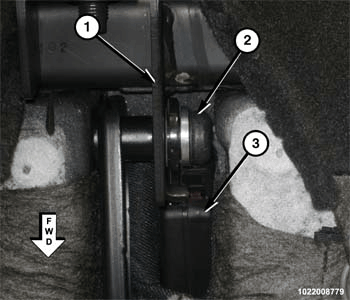

- Working beneath the rear of the left (60%) rear seat cushion, position the rear left seat belt buckle (3) to the rear seat cushion frame (1).
- Install the bolt (2) that secures the anchor plate of the rear left seat belt buckle to the rear seat cushion frame. Tighten the bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the left (60%) rear seat into the vehicle. Refer to SEAT, REAR, INSTALLATION .
