Shroud, Steering Column, Upper: Removal

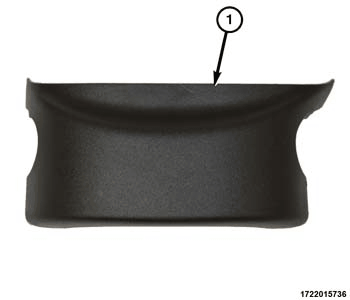

GC0159582Courtesy of CHRYSLER GROUP, LLC
  1. Separate the lower steering column shroud from the upper steering column shroud (1) by pressing on the edges of the shrouds.
    GC0159595Courtesy of CHRYSLER GROUP, LLC
  2. Disengage the upper steering column shroud tabs (1).
  3. Remove the steering column upper shroud (3).
