Removal And Installation: Installation

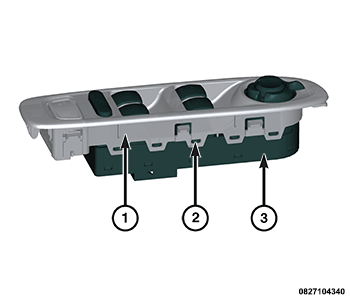

GC0178988Courtesy of CHRYSLER GROUP, LLC
  1. Position the switch bank (3) into the switch bezel (1), and fully engage all the switch bezel retaining clips (2).
  2. Connect the wiring harness connectors.

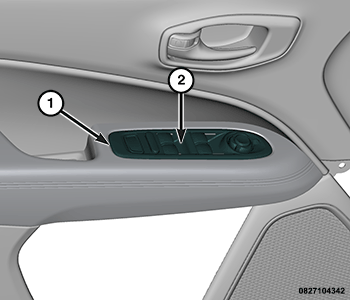

    GC0179321Courtesy of CHRYSLER GROUP, LLC
  3. Install the switch bank assembly (2) back into the door panel.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
