Removal And Installation: Installation

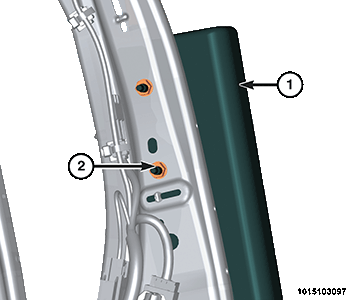

- Position the SAB (1) to the outboard side of the seat back frame and insert the studs through the mounting holes in the seat back frame.
- Install the two nuts (2) that secure the SAB to the inside of the seat back frame. Tighten the nuts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

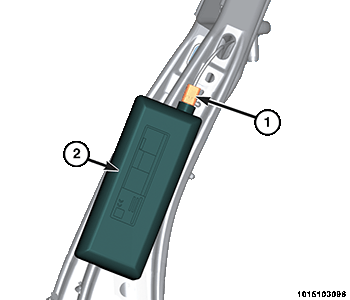

- Connect the seat wire harness connector (1) to the top of the SAB inflator (2). Be certain that the connector is fully engaged in its receptacle by listening carefully for a distinct, audible click as the connector snaps into place.
- Push the Connector Position Assurance (CPA) lock firmly into the SAB connector insulator until it is flush with the upper surface of the insulator.CAUTION:
Be certain that all of the trim is properly reinstalled on the front seat back frame. Failure to do so will adversely affect the function of the seat airbag system.
- Install the trim to the front and back of the front seat back frame. Refer to COVER, SEAT BACK, FRONT, REMOVAL AND INSTALLATION or COVER, SEAT BACK, REAR, REMOVAL AND INSTALLATION .
- Install the front seat into the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .
