Removal And Installation: Front: Installation

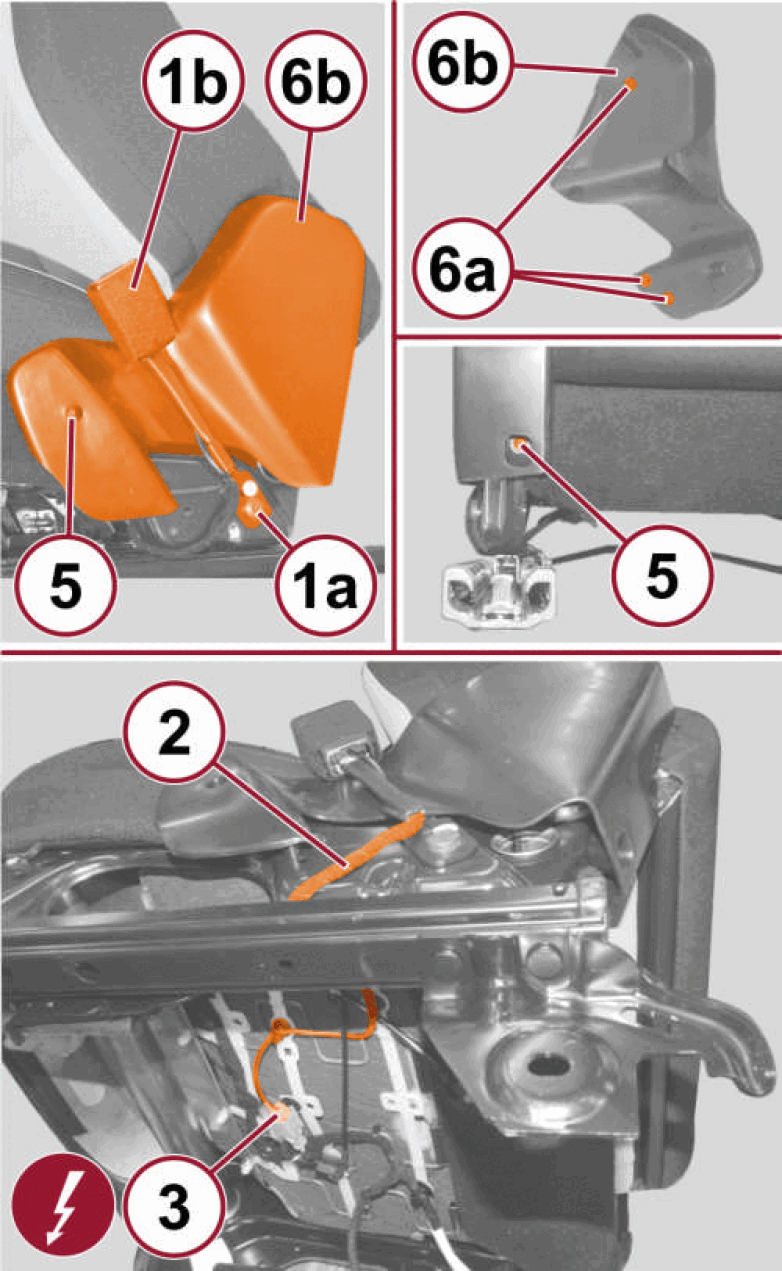

- Position the seat belt buckle lower anchor (1b) to the bracket on the inboard rear corner of the front seat.
- Route the seat belt switch pigtail wire (2) beneath the seat and engage it with the retainers on the underside of the front seat cushion.
- Connect the seat belt switch pigtail wire connector (3) to the seat wire harness.
- Install the screw (1a) that secures the buckle lower anchor (1b) to the seat bracket. Tighten the screw to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the left or right front seat into the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .
