2.4L Multi Air: Removal

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
4. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
5. Drain the cooling system. Refer to STANDARD PROCEDURE .
6. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

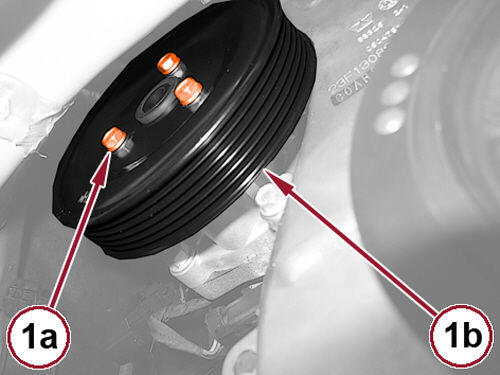

7. Remove the bolts (1a) and the water pump pulley (1b).

   Courtesy of CHRYSLER GROUP, LLC

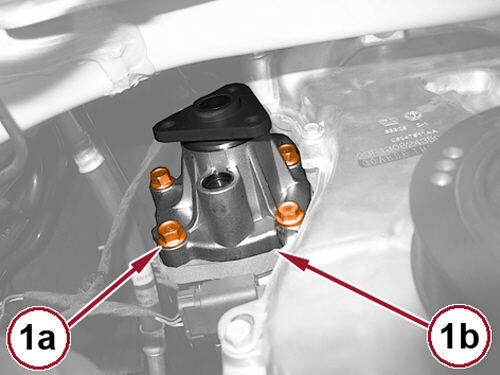

8. Remove the bolts (1a) and the water pump (1b) and the gasket.
9. Clean the water pump mounting surface (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install a NEW  gasket (1) onto the water pump.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the water pump (1a). Tightened the five bolts (1b) in a criss-cross pattern to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the water pump pulley (1a). Tighten the three bolts (1b) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
4. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
5. Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
6. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
7. Install the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
8. Fill the cooling system. Refer to STANDARD PROCEDURE .
9. Run the engine until it reaches normal operating temperature. Check the cooling system for correct fluid level or leaks. Refer to STANDARD PROCEDURE .
10. Remove the support and lower the vehicle.
