Removal And Installation

REMOVAL

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

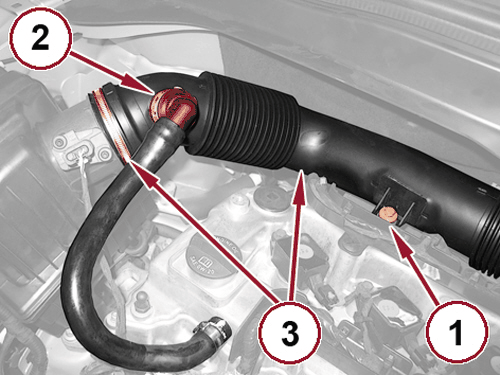

2. Remove the fastener securing the air tube to the throttle body (1).
3. Disconnect the engine oil vapor hose quick coupling (2).
4. Loosen the hose clamp and disconnect the air tubing (3).

   Courtesy of CHRYSLER GROUP, LLC

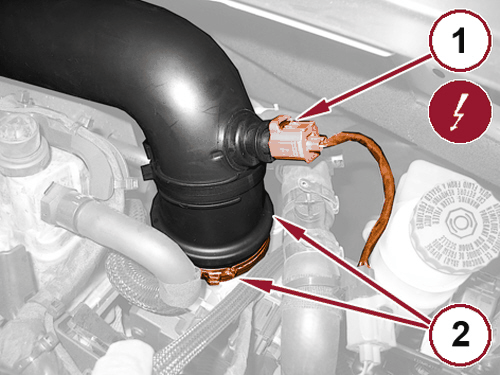

5. Disconnect the wire harness connector from the air temperature sensor (1).
6. Loosen clamp and remove the hose from the air filter to the throttle body (2).

   Courtesy of CHRYSLER GROUP, LLC

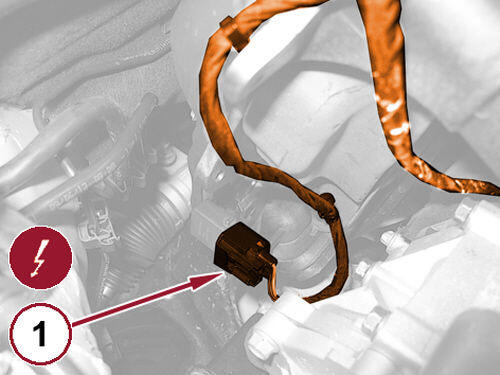

7. Disconnect the wire harness connector (1) from the manifold air pressure sensor.

   Courtesy of CHRYSLER GROUP, LLC

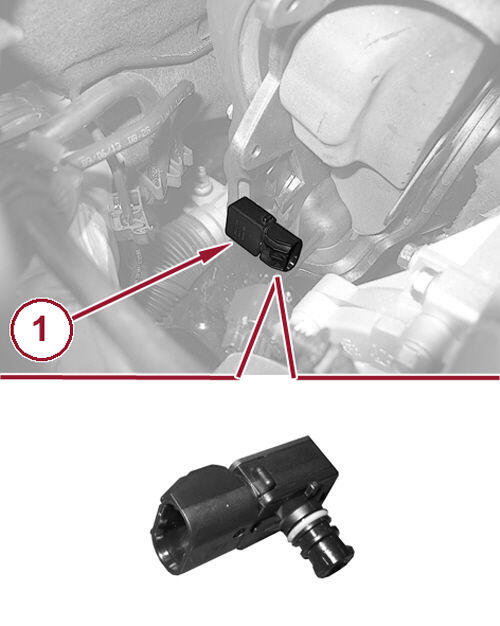

8. Rotate 90° counter clockwise and remove the sensor (1).

INSTALLATION

1. Install the manifold air pressure sensor and turn it 90 degrees clockwise.
2. Connect the wire harness connector to the manifold air pressure sensor.
3. Install the tubing from the air filter to the throttle body, throttle body side, and securely tighten the clamp.
4. Connect the wire harness connector to the air temperature sensor.
5. Connect the air hose from the filter to the throttle body, filter side, and securely tighten the clamp.
6. Connect the engine oil vapor hose quick coupling.
7. Securely tighten the air tube to the throttle body clamp.
8. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION or COVER, ENGINE, REMOVAL AND INSTALLATION .
