Connector Terminal Removal

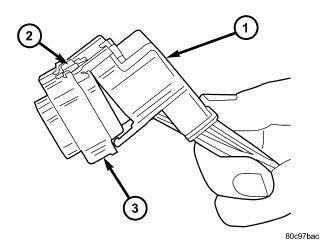

GC0137482Courtesy of CHRYSLER GROUP, LLC
1 - DRESS COVER
2 - CONNECTOR LOCK
3 - CONNECTOR
  1. Disconnect battery.
  2. Release Connector Lock (2).
  3. Disconnect the connector (3) being repaired from its mating half/component.
  4. Remove the dress cover (if applicable) (1).

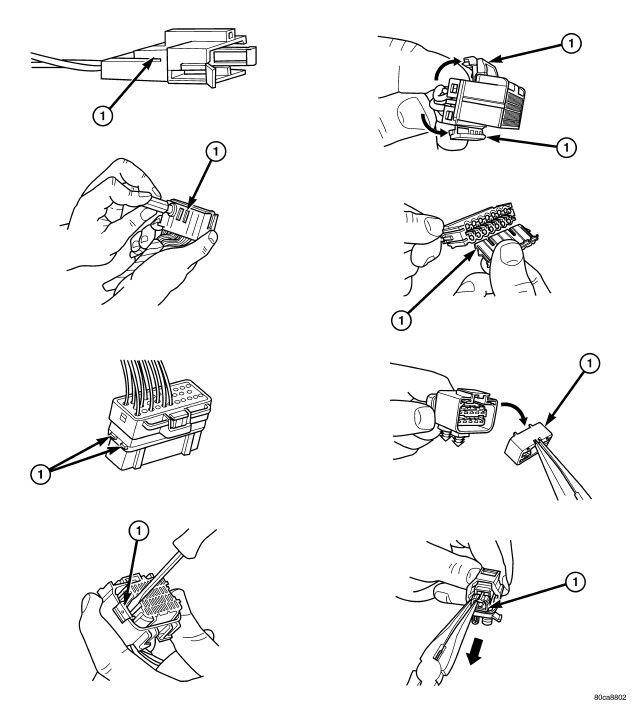

    GC0137483Courtesy of CHRYSLER GROUP, LLC
    1 - Secondary Terminal Lock
  5. Release the Secondary Terminal Lock, if required (1).

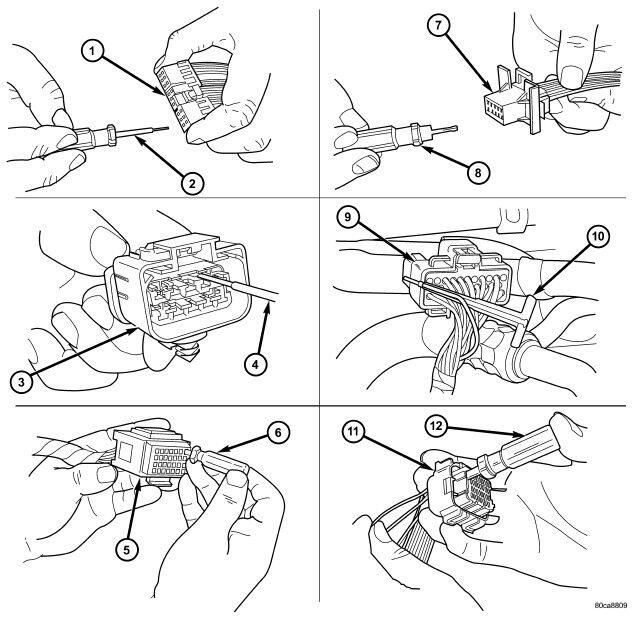

    GC0137484Courtesy of CHRYSLER GROUP, LLC
    1 - TYPICAL CONNECTOR
    2 - PICK FROM TERMINAL REMOVER KIT 10300
    3 - APEX CONNECTOR
    4 - PICK FROM TERMINAL REMOVER KIT 10300
    5 - AUGAT CONNECTOR
    6 - ELECTRICAL TERMINAL REMOVAL TOOL
    7 - MOLEX CONNECTOR
    8 - PICK FROM TERMINAL REMOVER KIT 10300
    9 - THOMAS AND BETTS CONNECTOR
    10 - TERMINAL REMOVER
    11 - CONNECTOR
    12 - ELECTRICAL TERMINAL REMOVER
  6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector.
