Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .

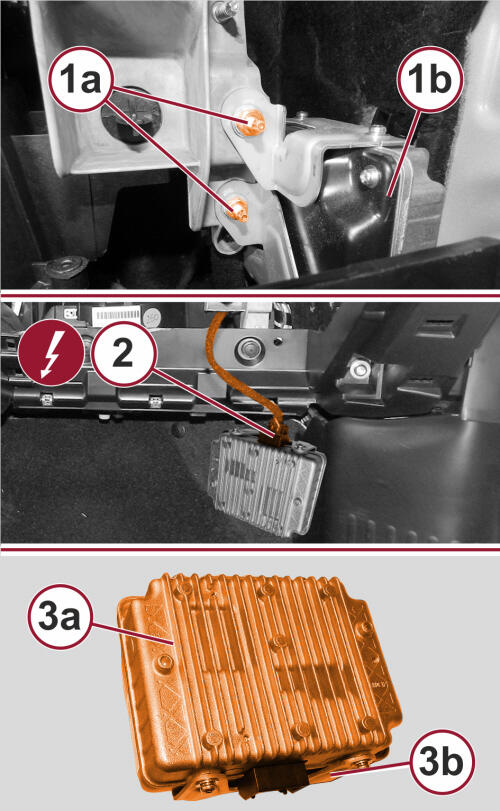

    GC0165513Courtesy of CHRYSLER GROUP, LLC
  3. Working within the storage compartment, remove the fasteners (1a) and remove the power inverter module with support bracket (1b).
  4. Disconnect the electrical connection (2) from the power inverter module.
  5. Separate the power inverter module from the bracket.
