Front Power Outlet: Removal
- Disconnect and isolate the negative battery cable.

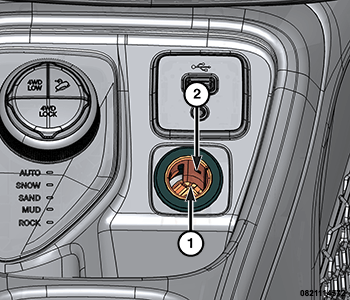

- Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) into the retaining bosses (2) of the power outlet (1).
- Pull out the base through the mounting ring by gently rocking the tool.
- Disconnect the wire harness connector from the power outlet.
- Remove the power outlet from the vehicle.
