Mid Power Outlet: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

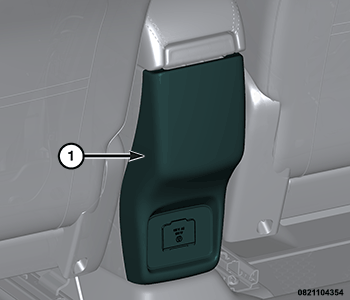

    GC0178817Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick, pull the floor console rear cover (1) away enough to reach the electrical connector.

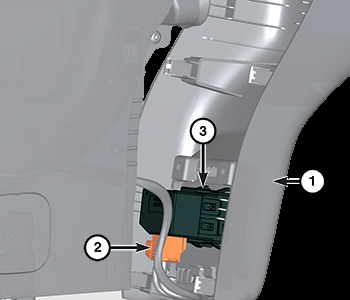

    GC0178851Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical harness connector (2) at the power outlet.
  4. Release the retainers (3) on the top and bottom of the outlet and remove the power outlet from the floor console cover (1).
