Negative Battery Cable: Installation

  1. Position the negative battery cable for installation.

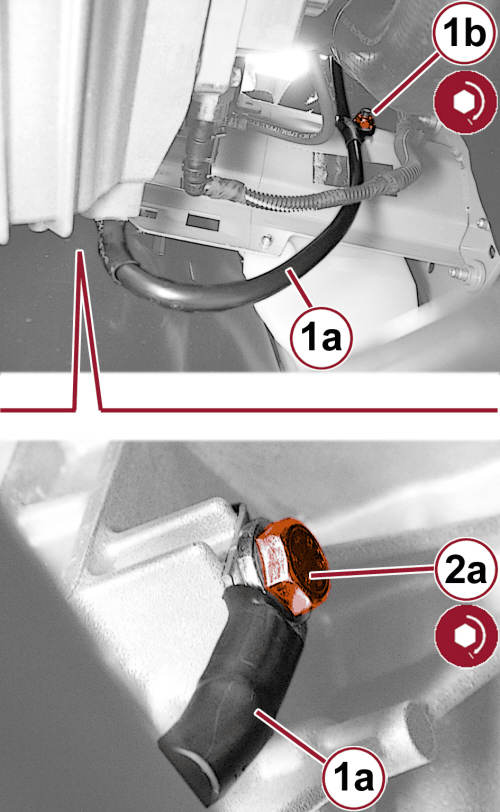

    GC0163272Courtesy of CHRYSLER GROUP, LLC
  2. Connect the cable terminal to the chassis ground (1a), then screw the nut (1b) and tighten it to the specified torque.
  3. Connect the terminal to the gearbox of the ground wire (1a), then tighten the screw (2a) and tighten to the specified torque.
  4. Install the left front wheel splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  5. Engage the ground lead to the retaining clip.
  6. Connect the negative battery terminal to the battery. Refer to STANDARD PROCEDURE .
  7. If equipped with press connect terminal, Connect the terminal to the negative battery pole.
