Removal And Installation: Removal

  1. Remove the steering column. Refer to COLUMN, REMOVAL AND INSTALLATION .

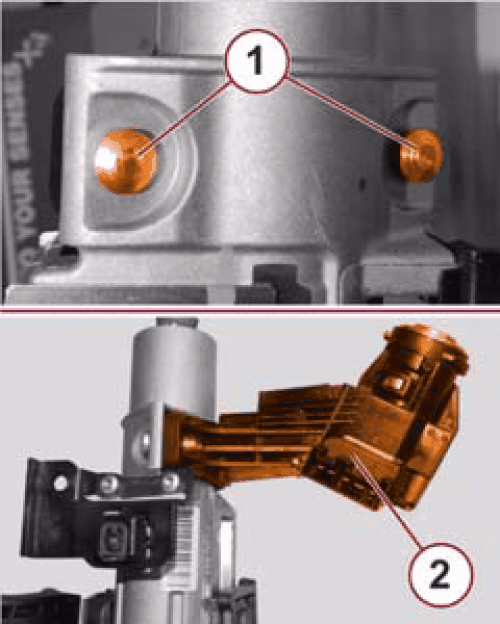

    GC0169418Courtesy of CHRYSLER GROUP, LLC
  2. Using a drift and a hammer, remove the headless screws (1). Work carefully to avoid excessive vibration.
  3. Remove the ignition switch with steering lock.
