Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

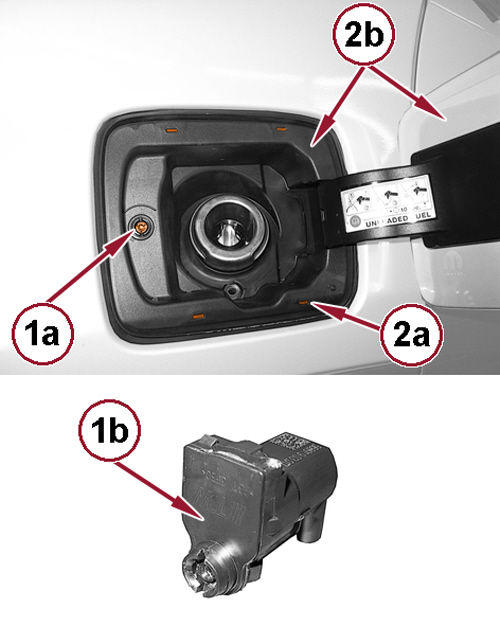

1. Rotate the screw (1a) 90° and remove the device for retaining the door (1b).
2. Detach the clips (2a) and remove the fuel fill door (2b).

   Courtesy of CHRYSLER GROUP, LLC

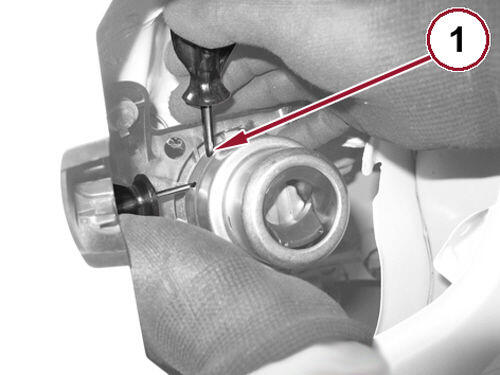

3. Working with suitable screwdriver, lift the four retaining clips of the capless fuel fill receptacle (1).
4. With the tool unseat capless fuel fill receptacle.
5. Remove the capless fuel fill receptacle to replace.

INSTALLATION

1. Install a new O-ring, supplied with the new capless fuel fill receptacle.
   NOTE:

   Make sure that the O-ring is properly positioned in the throat of the fuel fill tube.

2. Place in its seat the new capless fuel fill receptacle aligning the groove with the tooth of the fuel fill tube.

   Courtesy of CHRYSLER GROUP, LLC

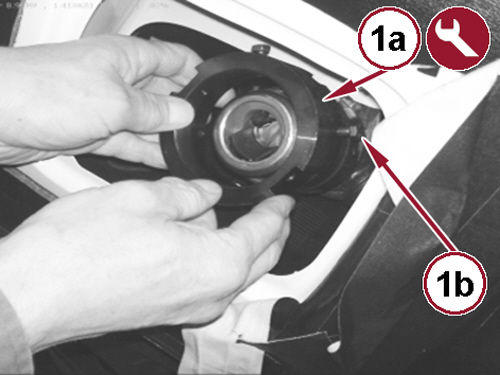

3. Place the ring (1a) of the installation tool (2000039800) so that the screws (1b) coincide with the four fastening clips of the capless fuel fill receptacle.

   Courtesy of CHRYSLER GROUP, LLC

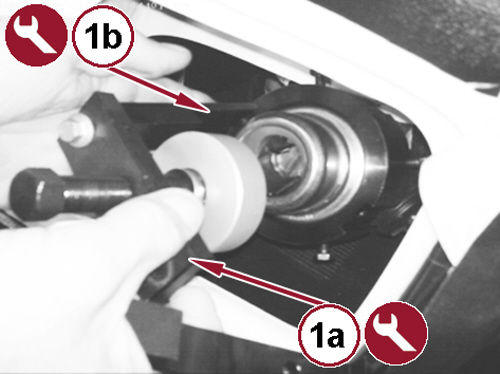

4. Prepare the installation tool (2000042900) (1a) and (1b) as shown in illustration.

   Courtesy of CHRYSLER GROUP, LLC

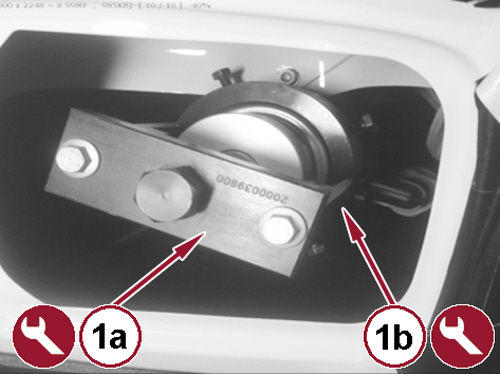

5. Position the tools (1a) and (1b) as shown in illustration.

   Courtesy of CHRYSLER GROUP, LLC

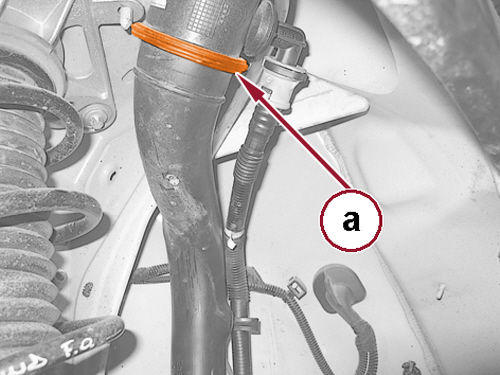

6. Check that the jaws have engaged the ring and the collar "a" of the fuel fill tube.

   Courtesy of CHRYSLER GROUP, LLC

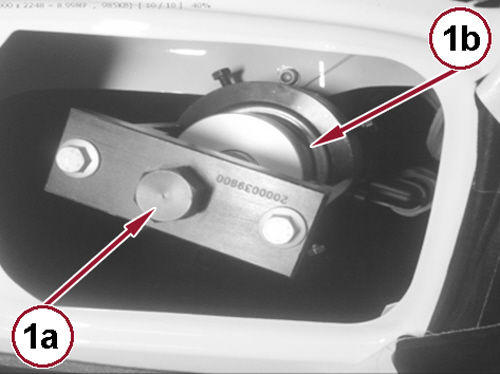

7. Tighten the screw (1a) to engage the capless fuel fill receptacle (1b) on the collar of the fuel fill tube.

   Courtesy of CHRYSLER GROUP, LLC

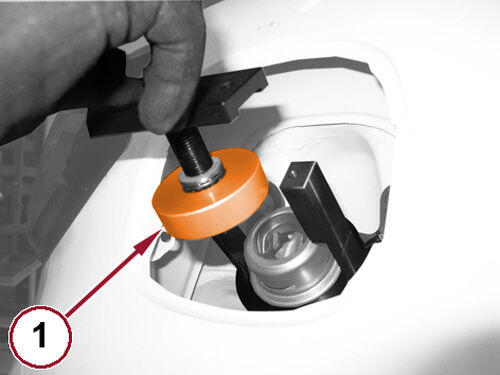

8. Unscrew the screws and remove the driver shown in the figure (1).
9. Tighten the screws into the rings to crush the four fasteners.
10. Remove the tools and verify that the four pegs of the capless fuel fill receptacle are properly installed.
11. Install the fuel fill door, engaging the retaining clips.
12. Install the fuel door retaining device and rotate the screw 90°.
