Description And Operation

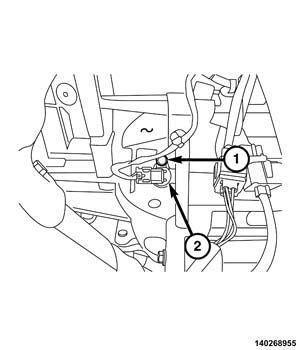

- The Crankshaft Position (CKP) sensor (2) is mounted into the left side of the cylinder block at the rear of the engine. It is positioned to read the tone wheel mounted on the crankshaft.
- Engine speed and crankshaft position are provided through the CKP (Crankshaft Position) sensor. The sensor generates pulses that are the input sent to the Powertrain Control Module (PCM). The PCM interprets the sensor input to determine the crankshaft position. The PCM then uses this position, along with other inputs, to determine injector sequence and ignition timing.
- The sensor is a hall effect device.
- A tone wheel (target wheel) is located on the rear of the crankshaft.
- This tone wheel causes a pulse to be generated when passing under the sensor. The pulses are the input to the PCM.
