Removal And Installation: Installation

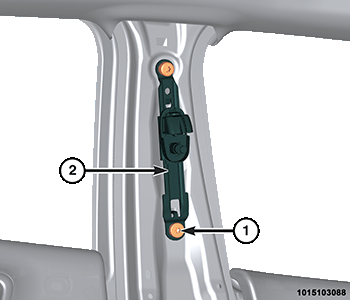

GC0179024Courtesy of CHRYSLER GROUP, LLC
  1. Position the seat belt turning loop adjuster (2) to the inside of the B-pillar.
  2. Install the two mounting bolts (1) that secure the adjuster (2) to the B-pillar and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the upper B-pillar trim. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION or PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION .
    GC0179154Courtesy of CHRYSLER GROUP, LLC
  4. Position the seat belt turning loop (2) to the height adjuster on the upper B-pillar. Be certain that the seat belt webbing between the retractor and the turning loop is not twisted.
  5. Install the mounting nut (1) that secures the turning loop to the height adjuster and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

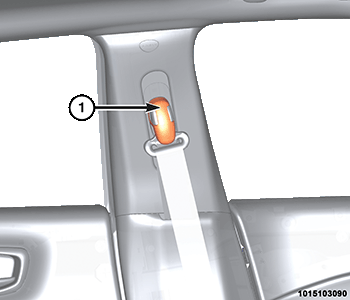

    GC0178762Courtesy of CHRYSLER GROUP, LLC
  6. Snap the trim cover (1) to the height adjuster on the upper B-pillar.
