Removal And Installation: Rear: Installation

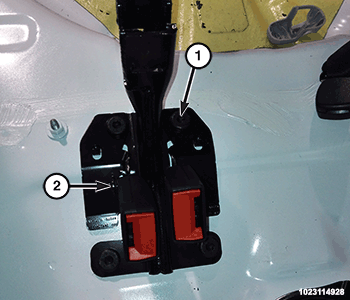

GC0179271Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear seat belt buckle unit (2) to the rear floor panel.
  2. Install the screw or screws (1) that secure the rear seat belt buckle anchor to the rear floor panel. Tighten the screws to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the rear seat cushion into the vehicle. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .
