Removal And Installation: Installation
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

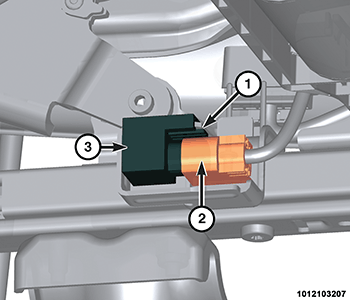

- Reach under the rear edge of the front seat cushion to connect the seat wire harness connector (2) to the STPS (3) connector receptacle. Be certain that the latch on the connector is fully engaged.
- Align the open end of the STPS mounting slot (1) to the blade of the STPS bracket located on the inboard side near the rear of one of the upper seat tracks.
- Push the STPS firmly to the bracket until the latch (1) feature snaps into place with an audible click.
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to STANDARD PROCEDURE .
