Removal And Installation: Installation

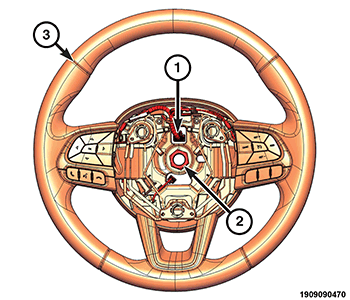

GC0179316Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the steering wheel switches.
  2. Position the steering wheel (3) on the shaft, aligning the references on the steering wheel and on the steering column.
  3. If equipped, install the steering wheel damper.
  4. Connect the steering wheel wire harness connector (1).
  5. Install a NEW  steering wheel nut (2) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Install drivers airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
  7. Connect the negative battery cable.
