Removal And Installation: Installation

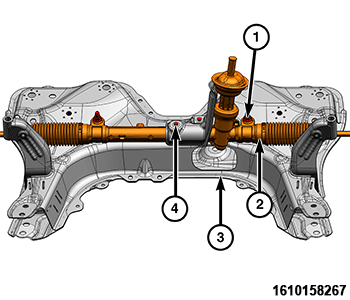

GC0188519Courtesy of CHRYSLER GROUP, LLC
  1. Position the steering gear (2) to the crossmember (3).
  2. Install and tighten the two steering gear bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Position the heat shield then install the two heat shield bolts (4) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION or CROSSMEMBER, REAR SUSPENSION, REMOVAL AND INSTALLATION or CROSSMEMBER, REAR SUSPENSION, REMOVAL AND INSTALLATION .
