Removal And Installation: Installation

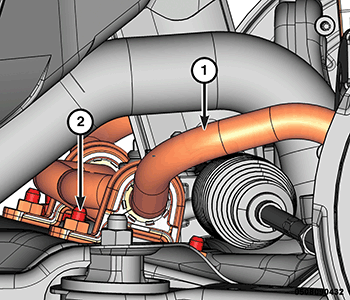

GC0178749Courtesy of CHRYSLER GROUP, LLC
  1. Install the stabilizer bar (1).

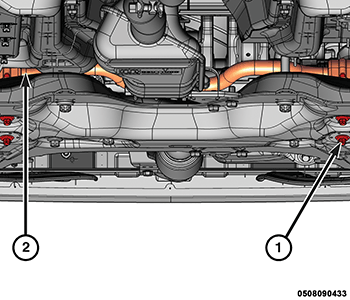

    GC0178883Courtesy of CHRYSLER GROUP, LLC
  2. Install the four stabilizer bar bolts (1) and tighten to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  3. Install the subframe. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
  4. Install both stabilizer bar links. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
