2.4L Multi Air: Removal

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION COVER, ENGINE, REMOVAL AND INSTALLATION COVER, ENGINE, REMOVAL AND INSTALLATION .
2. Remove the battery and battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
3. Drain the cooling system. Refer to STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

4. Loosen the clamp and remove the radiator hose (1) from the thermostat housing.

   Courtesy of CHRYSLER GROUP, LLC

5. Disconnect the Engine Coolant Temperature (ECT) sensor wire harness connector (1).
6. Disconnect the quick-connect coupling and remove the coolant hose (2) from the thermostat housing

   Courtesy of CHRYSLER GROUP, LLC

7. Disconnect the quick-connect coupling and remove the degas hose (1) from the thermostat housing.

   Courtesy of CHRYSLER GROUP, LLC

8. Release the lock tab (1a) and remove the bolt (1b) securing the coolant tube to the thermostat housing.

   Courtesy of CHRYSLER GROUP, LLC

9. Remove the bolt and loosen the nuts (1a) from the intake manifold upper support bracket (1b).
   NOTE:

   The bracket (1b) can not be removed at this time. Loosening the nuts (1a) will allow the bracket (1b) to be repositioned so the thermostat housing can be removed.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   A swivel socket or ratcheting wrench may be required to remove the lower rear bolt.

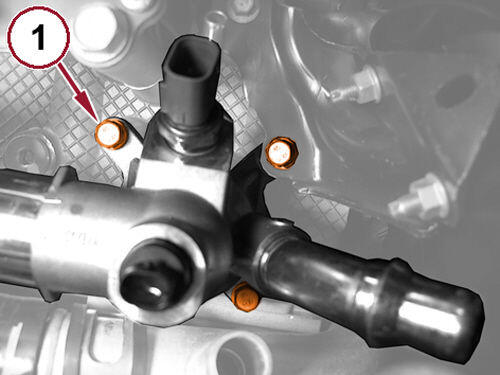

10. Remove the bolts (1) securing the thermostat housing.

    Courtesy of CHRYSLER GROUP, LLC

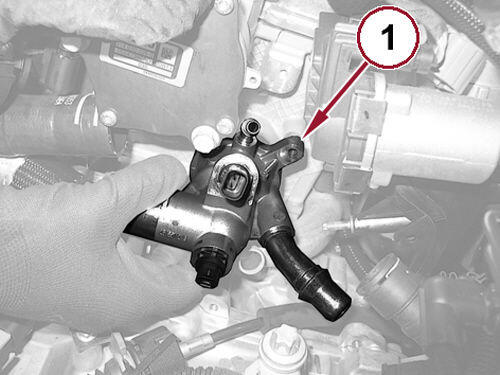

11. Remove the thermostat housing (1).

    Courtesy of CHRYSLER GROUP, LLC

12. Remove and discard the thermostat housing gasket (1).

INSTALLATION

1. Clean the gasket mating surfaces.

   Courtesy of CHRYSLER GROUP, LLC

2. Install a NEW  thermostat housing gasket (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Rotate the loop clamp (1) clockwise at least 45° away from the thermostat mounting surface.

   Courtesy of CHRYSLER GROUP, LLC

4. Pull the intake manifold upper support bracket (1) slightly away from the engine and install the thermostat housing (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Rotate the loop clamp (1) back into position against the thermostat housing flange.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the four thermostat housing bolts (1) hand tight.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the fasteners (1a) to the intake manifold upper support bracket (1b). Securely tighten the fasteners and previously installed thermostat housing bolts in a criss-cross pattern to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

8. Bend the loop clamp end tab (1a) to secure the thermostat housing bolt (1b).

   Courtesy of CHRYSLER GROUP, LLC

9. Install the degas hose (1) to the thermostat housing and connect the quick-connect fitting.

   Courtesy of CHRYSLER GROUP, LLC

10. Install the coolant hose to the thermostat housing and engage the quick-connect coupling (2).
11. Connect and lock the Engine Coolant Temperature (ECT) sensor wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

12. Install the radiator hose (1) to the thermostat housing and securely tighten the clamp.
13. Install the battery tray and battery. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
14. Fill the cooling system. Refer to STANDARD PROCEDURE .
15. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION COVER, ENGINE, REMOVAL AND INSTALLATION COVER, ENGINE, REMOVAL AND INSTALLATION .
16. Start engine and check for leaks.
17. Run the engine until it reaches normal operating temperature. Check the cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
