Torque Specification

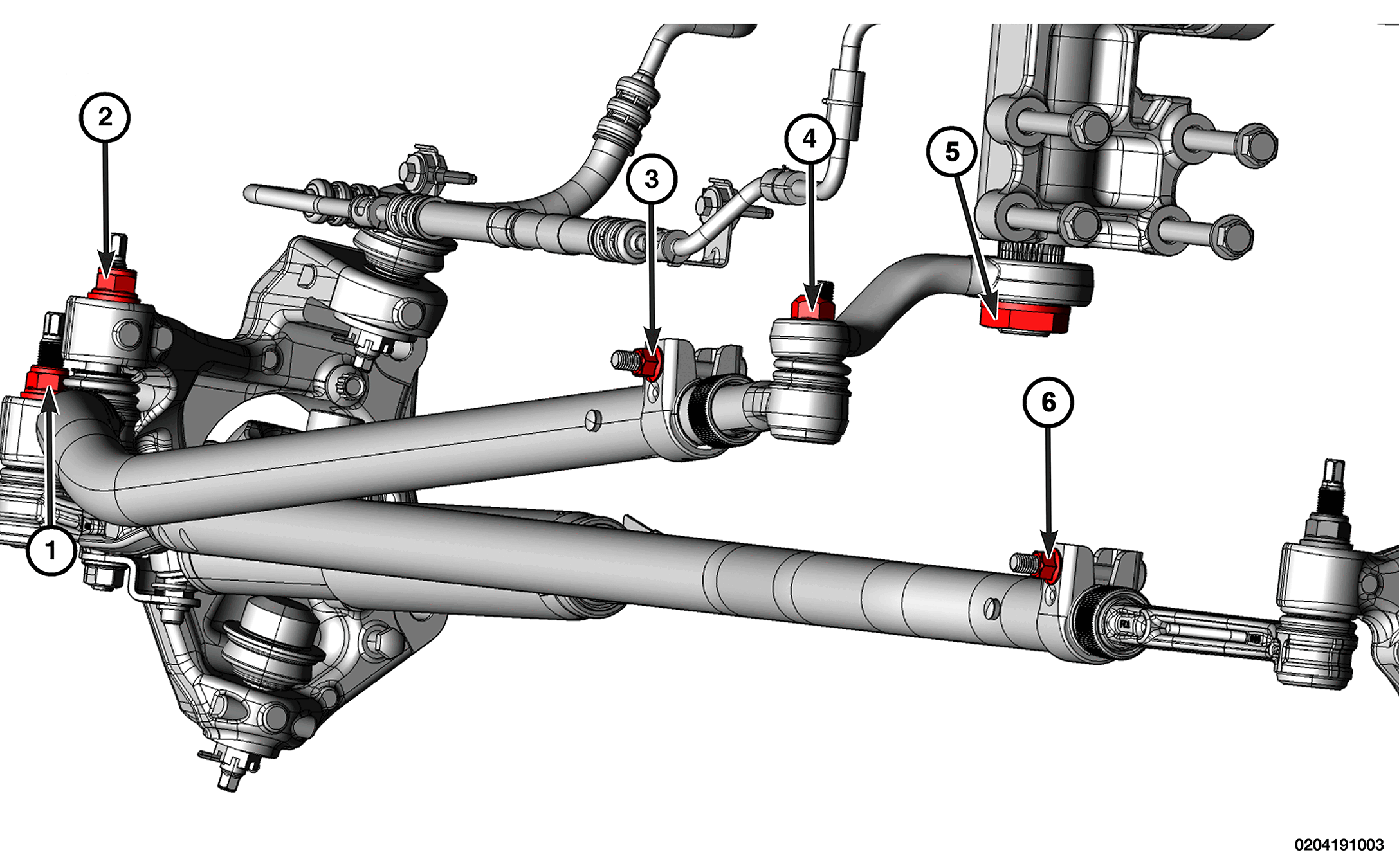

TORQUE SPECIFICATIONS - STEERING LINKAGE (1 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Tie Rod End Nut | 40 N. m + 125° (30 Ft. Lbs. + 125°) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 | Drag Link Outer Nut | 40 N. m + 125° (30 Ft. Lbs. + 125°) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 3 | Drag Link Adjuster Clamp | 46 N. m (34 Ft. Lbs.) | - |
| 4 | Drag Link Inner Nut | 39 N. m + 125° (29 Ft. Lbs. + 125°) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 | Pitman Arm Nut | 250 N. m (185 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 6 | Tie Rod End Adjuster Clamp | 46 N. m (34 Ft. Lbs.) | - |

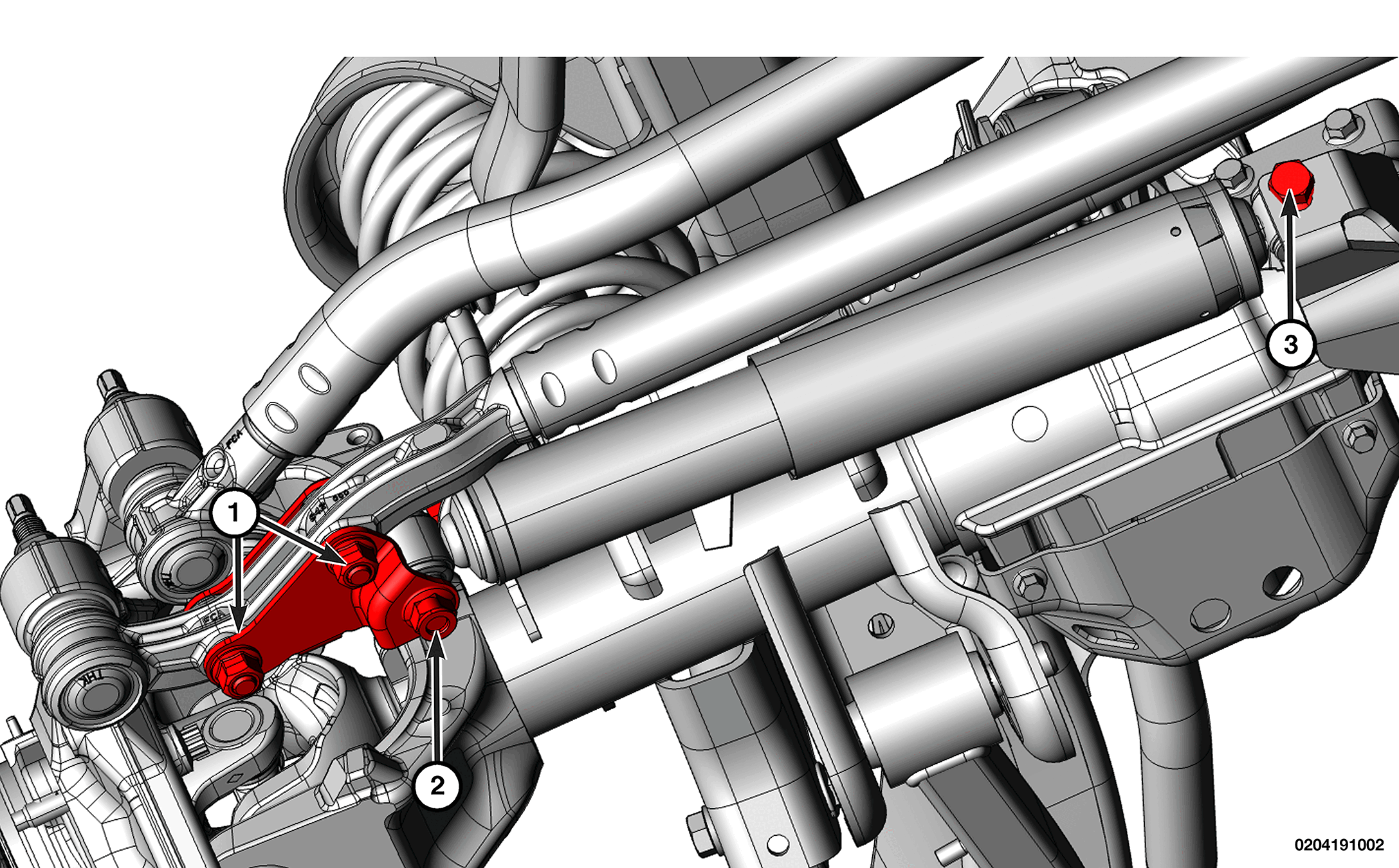

TORQUE SPECIFICATIONS - STEERING LINKAGE (2 OF 2)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Damper Bracket Nut | 75 N. m (55 Ft. Lbs.) | - |
| 2 | Steering Damper Nut | 75 N. m (55 Ft. Lbs.) | - |
| 3 | Steering Damper Bolt | 68 N. m (50 Ft. Lbs.) | - |
