Outlet, Power, 115 V: Installation
- Insert the 115v power outlet into the panel.

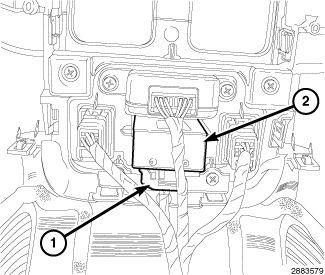

- Connect the wiring harness connector (1) onto the 115v power outlet (2).

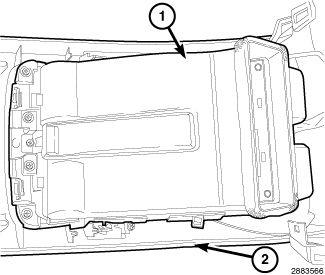

- Install the HVAC duct (1) onto the center console rear panel (2).
- Install the center console rear panel.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
