Fuel System Pressure Release

  1. Remove the fuel fill cap.
    NOTE:

    If equipped with a capless fuel system, insert funnel or equivalent into capless unit to release pressure.

  2. Remove the fuel pump relay from the Auxiliary PDC. Refer to FUSE - RELAY LOCATIONS AND TYPES, SPECIFICATIONS .
  3. Start and run the engine until it stalls.
  4. Attempt restarting the engine until it will no longer run.
  5. Turn the ignition to the OFF position.

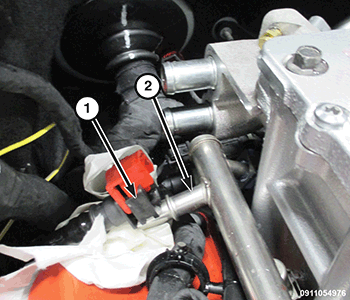

    GC0170062Courtesy of CHRYSLER GROUP, LLC
  6. Place a rag or towel below the fuel supply line quick-connect fitting (1).
  7. Disconnect the fuel supply line quick-connect fitting at the fuel supply line to fuel rail (2). Refer to QUICK CONNECT FITTINGS  .
  8. Return the fuel pump relay to the Auxiliary PDC.
NOTE:

One or more Diagnostic Trouble Codes (DTC) may have been stored in the PCM memory due to fuel pump fuse removal. A diagnostic scan tool must be used to erase a DTC.
