Sensor, Accelerator Pedal Position: Installation

Courtesy of CHRYSLER GROUP, LLC

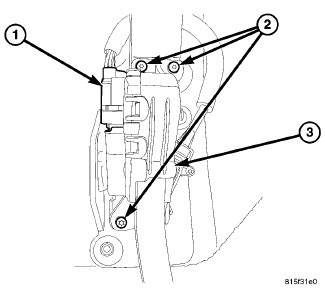

1. Install the accelerator pedal assembly (3) and tighten the fasteners (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
2. Connect the accelerator pedal position sensor wiring connector (1).
3. Install the drivers lower dash board close out panel.
4. Connect the negative battery cable.
