Inlet Air Temperature Sensor

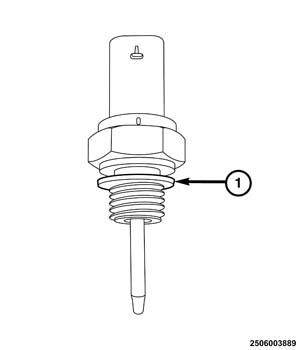

GC0157434Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the inlet air temperature sensor sealing washer (1) and replace if necessary.

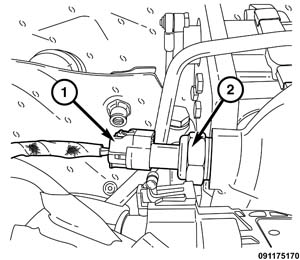

    GC0157442Courtesy of CHRYSLER GROUP, LLC
  2. Install the inlet air temperature sensor (2) and tighten to 20 N.m (15 ft. lbs.).
  3. Connect the inlet air temperature sensor wire harness connector (1).
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  4. Install the engine cover (1).
  5. Connect the negative battery cable.
