Outlet Air Temperature Sensor

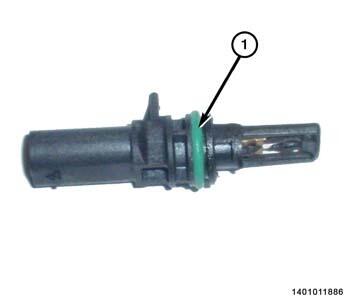

GC0158177Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the outlet air temperature sensor O-ring seal (1) and replace if necessary.
    GC0158159Courtesy of CHRYSLER GROUP, LLC
  2. Install the outlet air temperature sensor (1) and turn clockwise 1/4 to lock in place.
    GC0158203Courtesy of CHRYSLER GROUP, LLC
  3. Connect the outlet air temperature sensor wire harness connector (1).
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  4. Install the engine cover (1).
  5. Connect the negative battery cable.
