Sensor, Air Temperature, Intake: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

1. The sensor O-ring seal can be reused if not damaged.
2. Clean the Inlet Air Temperature (IAT) sensor mounting hole in the air inlet hose.

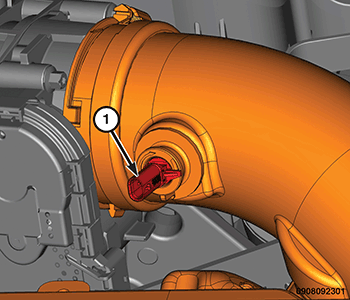

3. Install the IAT sensor (1) into the air inlet hose and rotate clockwise until the release tab engages.

   Courtesy of CHRYSLER GROUP, LLC

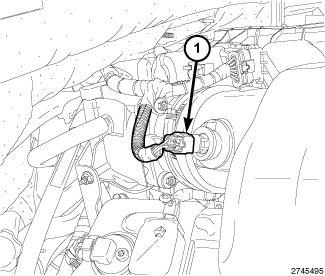

4. Install the IAT sensor wire harness connector (1).
5. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
6. Connect the negative battery cable.
