Sensor, Air Temperature, Intake: Installation: 5.7L

Courtesy of CHRYSLER GROUP, LLC

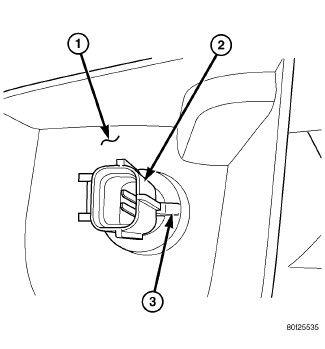

1. Check the condition of the Intake Air Temperature (IAT) sensor O-ring, replace if necessary.
2. Clean the IAT sensor (2) mounting hole in the air cleaner resonator.
3. Position the IAT sensor into the air cleaner resonator (1), rotate clockwise about 1/4 turn until the release tab (3) locks into position.

   Courtesy of CHRYSLER GROUP, LLC

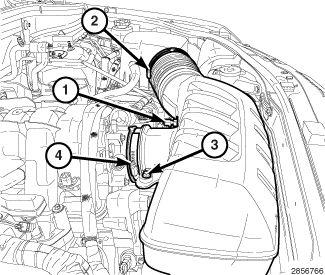

4. Connect the electrical connector to the IAT sensor (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Position the engine cover (2) and secure the retaining grommets to the ball studs.
6. Install the oil fill cap (1).
