Sensor, Air Temperature, Intake: Installation: 6.2L

NOTE:

Use care not to bend or damage the Inlet Air Temperature (IAT) sensor probe while installing.

Courtesy of CHRYSLER GROUP, LLC

Install the IAT sensor (1) into the rubber air intake hose, turn the IAT sensor 1/4 turn clockwise and lock into position.

Courtesy of CHRYSLER GROUP, LLC

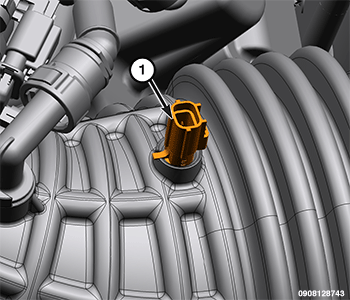

Connect the IAT sensor wire harness connector (1).
