Sensor, Crankshaft Position: Installation: 3.6L
- Lubricate the Crankshaft Position (CKP) sensor O-ring (1) with clean engine oil.
- Clean the CKP sensor mounting bolt hole in the engine block.

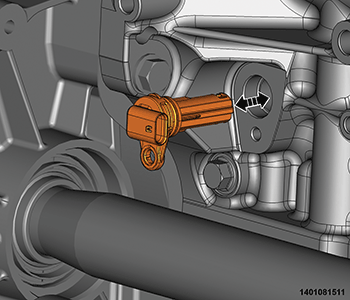

- Install the sensor into the engine block with a slight rocking and twisting action.CAUTION:
Before tightening the CKP sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.

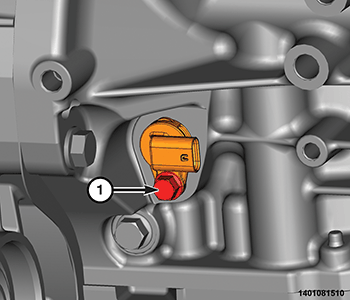

- Install the CKP sensor bolt (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS
.

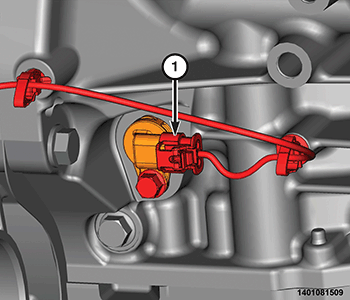

- Connect the CKP sensor wire harness connector (1).
- Remove the support and lower the vehicle.
- Connect the negative battery cable.
NOTE:
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
