Sensor, Manifold Absolute Pressure (Map): Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

1. The Manifold Air Pressure (MAP) sensor O-ring can be reused if not damaged.
2. Apply a small amount of engine oil to the sensor O-ring (1).

   Courtesy of CHRYSLER GROUP, LLC

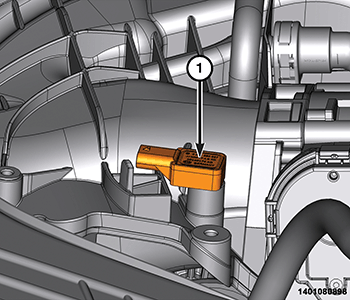

3. Install the MAP sensor (1) into the upper intake manifold and rotate 1/4 turn clockwise.

   Courtesy of CHRYSLER GROUP, LLC

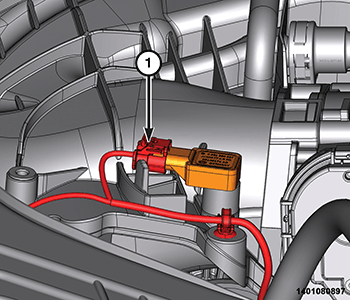

4. Connect the MAP sensor wire connector (1).
5. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
6. Connect the negative battery cable.
