Sensor, Manifold Absolute Pressure (Map): Installation: 5.7L/6.4L

Courtesy of CHRYSLER GROUP, LLC

1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor O-ring (2) for cuts or tears.

   Courtesy of CHRYSLER GROUP, LLC

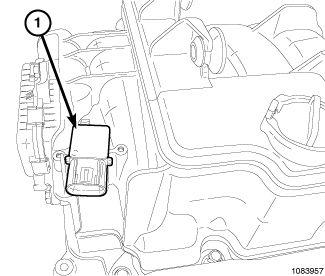

3. Position MAP sensor (1) into manifold.

   Courtesy of CHRYSLER GROUP, LLC

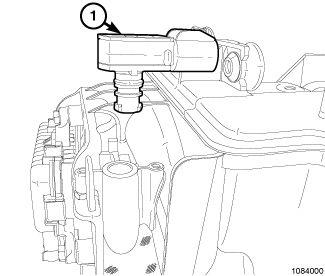

4. Rotate MAP sensor (1) clockwise for installation.
5. Connect electrical connector.
