Bank 2

Courtesy of CHRYSLER GROUP, LLC

Check condition of Temperature and Manifold Absolute Pressure (TMAP) sensor O-ring seal.
Clean the sealing area on the supercharger.
Lubricate the TMAP sensor O-ring seal with clean engine oil.

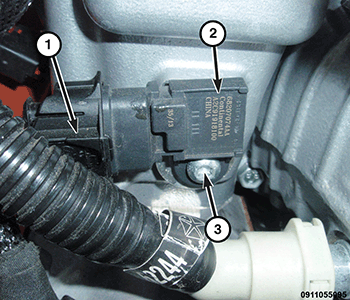

Install the TMAP sensor (2) into the supercharger. Tighten the screw (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Connect the TMAP sensor wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

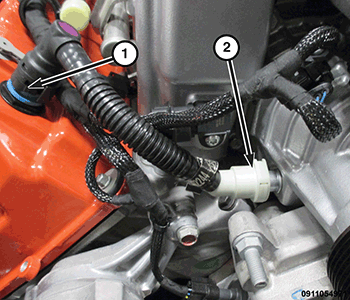

Position the PCV hose (2) and connect it to the supercharger.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
