Sending Unit And Sensor, Fuel Level: Installation

Courtesy of CHRYSLER GROUP, LLC

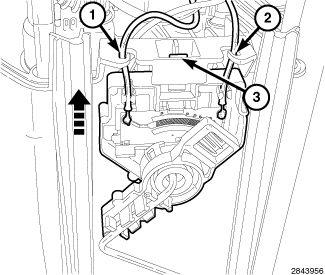

1. Position the fuel level sending unit to the fuel pump module, slide unit on mounting track until the plastic locking tab (3) snaps into position.
2. Route the fuel level sending unit wires into the retaining tabs (1, 2) on the fuel pump module.

   Courtesy of CHRYSLER GROUP, LLC

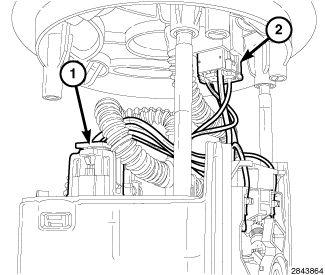

3. Connect the fuel level sending unit wire harness connectors (1, 2) to the fuel pump module.
4. Install the main fuel pump module. Refer to MODULE, FUEL PUMP, INSTALLATION .
