Injector(S), Fuel: Description

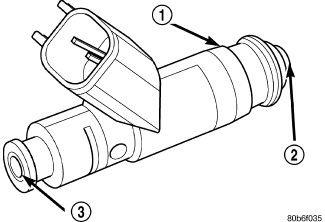

GC0082920Courtesy of CHRYSLER GROUP, LLC
1 - FUEL INJECTOR
2 - NOZZLE
3 - TOP (FUEL ENTRY)

An individual fuel injector (1) is used for each individual cylinder.
